Specialize In Silicone & Fluororubber

Thermally Conductive Silicone Grease For Various Electronic Products

Short Description:

Thermally conductive silicone grease TF-156 is made of silicone as the main raw material and adding materials with excellent heatproof and thermal conductivity. It is used for thermal conductivity and heat dissipation of power amplifier, transistor, electron tube, CPU and other electronic components, so as to ensure the stable electrical performance of electronic instruments.

If you are interested in our products or want to sell our products, we will give you good prices and excellent services.


Product Detail

Product Tags

Thermally Conductive Silicone Grease For Various Electronic Products

     TF-156



DESCRIPTION

Thermally conductive silicone grease TF-156 is made of silicone as the main raw material and adding materials with excellent heatproof and thermal conductivity.

It is used for thermal conductivity and heat dissipation of power amplifier, transistor, electron tube, CPU and other electronic components.

So as to ensure the stable electrical performance of electronic instruments.



FEATURES

1, Excellent thermal conductivity, heat dissipation, electrical insulation, moistureproof, shakeproof, and aging resistance.



2, Work at -50℃ to 250℃ for a long time. Its consistency changes very little when the temperature changes, showing at high temperature does not melt , does not harden, does not freeze at low temperature.



3, No corrosive effect on iron, steel, aluminum and various synthetic materials. No swelling to plastic and rubber.



APPLICATION

Widely used in thermal conductivity, electrical insulation, demoulding, antifouling, waterproof, coating, shakeproof, damping and instrument analysis.



USAGE

1,The coated surface will be wiped (washed) clean to no impurities. It can be coated or filled directly with a scraper, brush, glass rod or injector.



2, In the process of use, sometimes there are a few bubbles. Bubbles can be vented by standing, pressurizing or vacuuming.



PROPERTY

Appearance: gray paste

Base oil : methyl phenyl silicone oil

Specific gravity: 2.5~3.5

Penetration degree(1/10mm,25℃): 280~303

Fugitive constituent (150℃,24h) % : ≤0.2

Oil Separation (150℃, 24h) % : ≤0.2

Thermal conductivity (W/m·K): ≥2.5

Anti-high and low temperature: -50℃ to 250℃



PACKING

1KG/Bottle



STORAGE

Store in a cool and dry place , it can be stored for 6 months at room temperature.



SAMPLE

Free sample



NOTICE

The use of thermally conductive silicone grease is not the more the better, but the thinner the better under the premise of ensuring that the gap is filled.



More coating thermally conductive silicone grease is not good, it will affect the efficiency of thermal conductive.

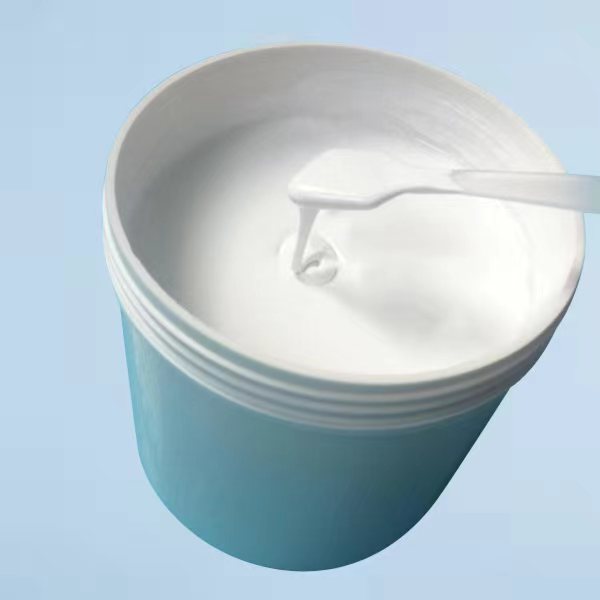

white thermal grease

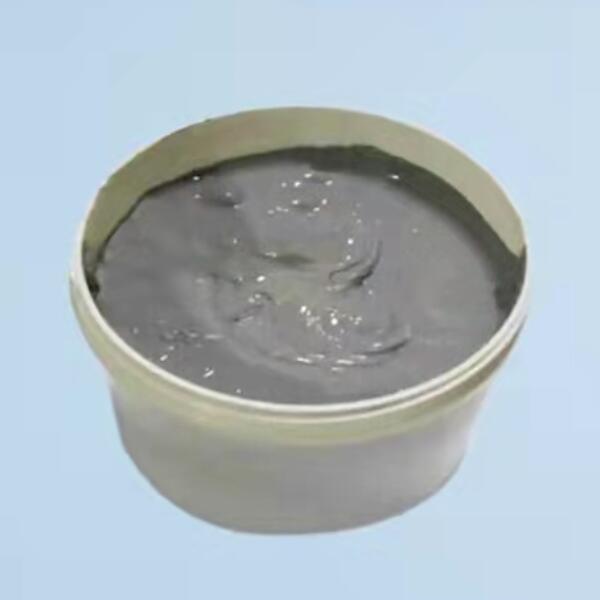

grey thermally conductive grease

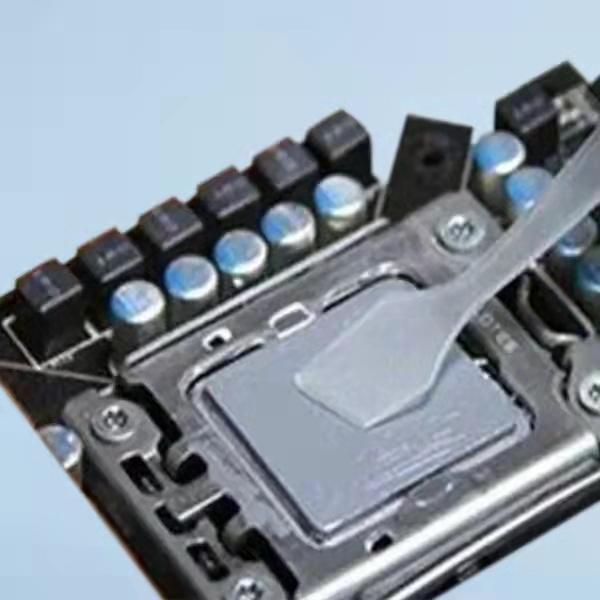

grey thermally conductive silicone rubber grease

REMARK

Our company also supplies thermal conductive silicone materials,

good quality and good price.



If you are interested in our products or any questions.

Welcome to leave your message.

We will reply soon.

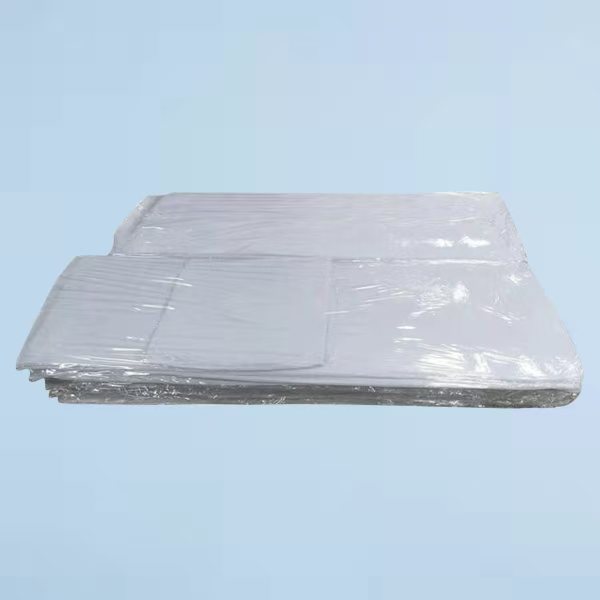

thermal conductive silicone material

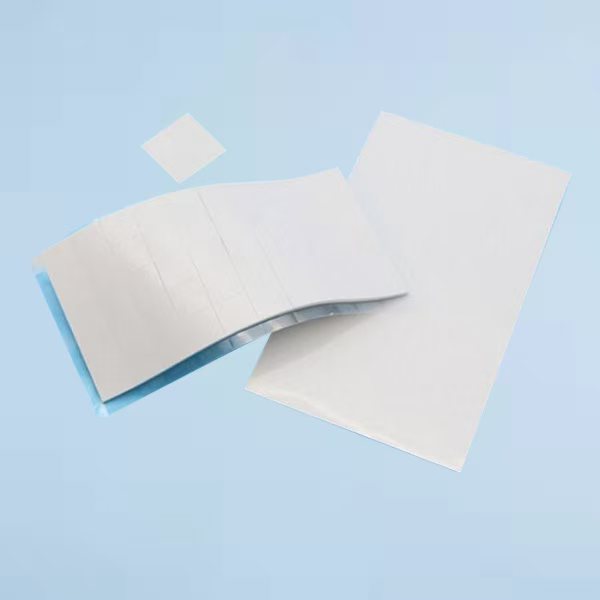

thermal conductive silicone rubber material

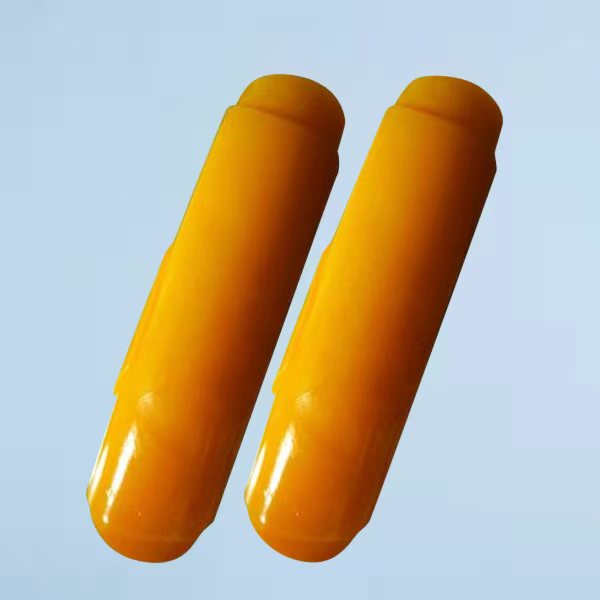

colored thermal conductive silicone material



ABOUT TOSICHEN

Shenzhen Tosichen Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, production and sales of silicone and fluororubber materials.



Our company main products as following,

Silicone tube

Silicone gasket

Silicone strap

Fluororubber tube

Fluororubber strip

RTV silicone adhesive

Silicone O-ring adhesive

Silicone pigment

Silicone platinum curing agent

Silicone soft touch coating

Sticking skin silicone adhesive

Thermally conductive silicone grease

Printing liquid silicone rubber



Our products have been widely used in various silicone products, electronics, electrical appliances, automobiles, power supply, machinery, TV display, air conditioner, electric irons, comprehensive small household appliances and all kinds of industrial fields.

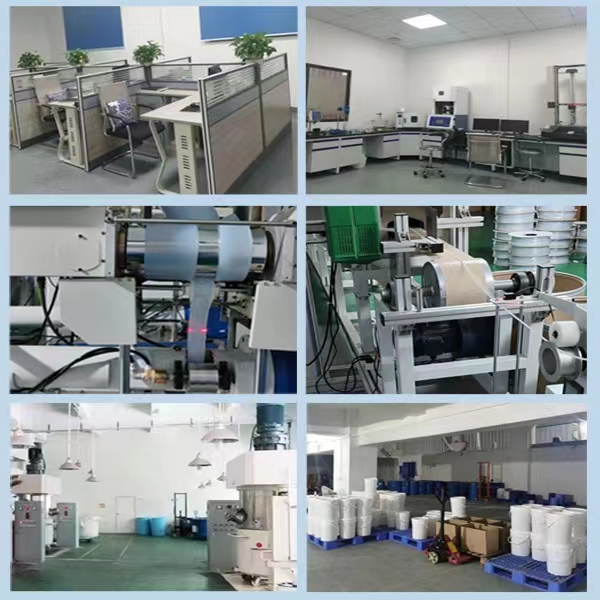

COMPANY PHOTO
